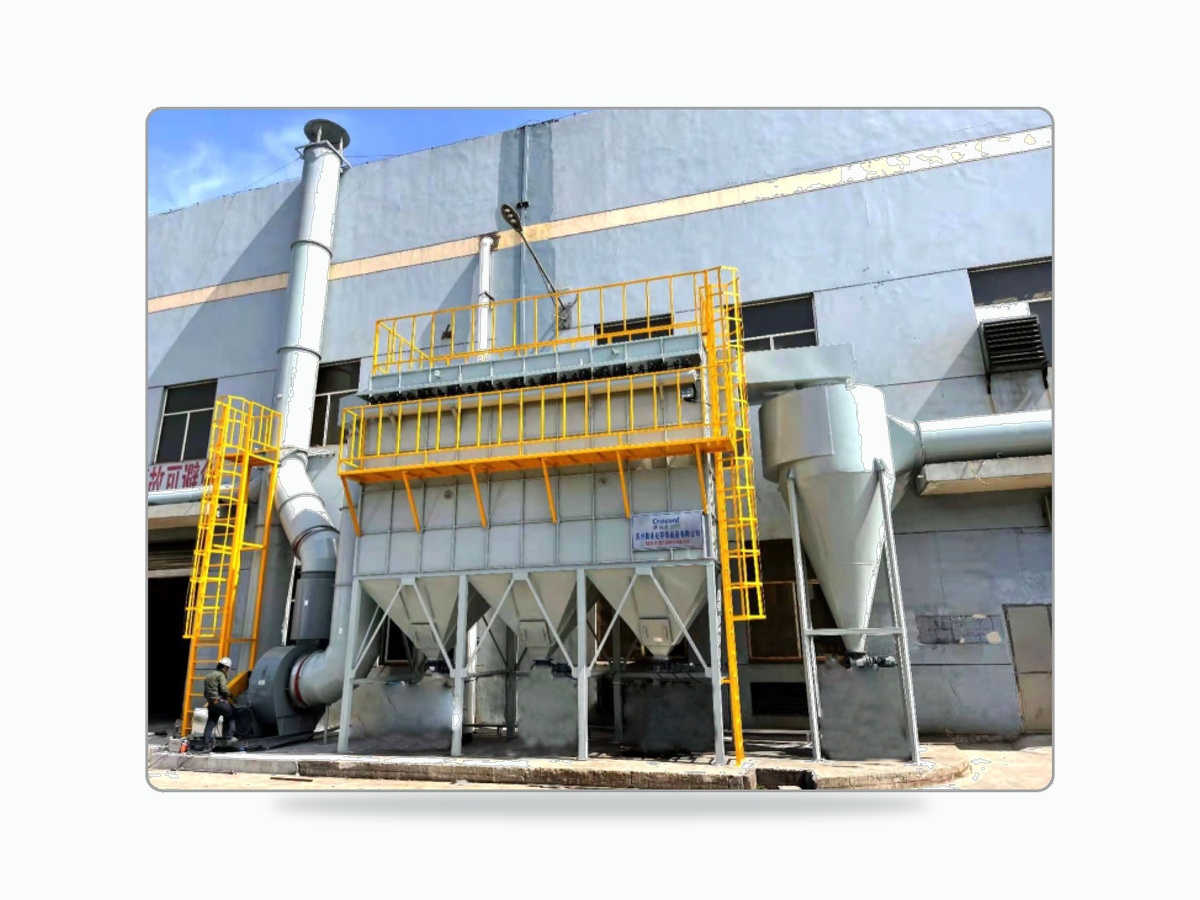

The MC Series represents an optimized compact baghouse design incorporating European pulse jet cleaning concepts. Featuring individual bag row high-pressure jetting with large-flow pulse valves, the system delivers superior cleaning kinetic energy and ultra-high dust release efficiency even when handling abrasive, high-humidity, or ultra-fine powders.
Industry Application Scope:
Extensively specified for construction materials, cement mills, metallurgical furnaces, mining crusher vents, chemical processing, coal handling, and non-metallic mineral ultrafine powder processing systems.
| Model | Filter Bags (pcs) | Filtration Area (㎡) | Handling Airflow (m³/h) | External Dimensions (L × W × H mm) |
|---|---|---|---|---|
| MC-36 | 36 | 29 | 1,740 - 5,220 | 1,200 × 1,300 × 3,800 |
| MC-64 | 64 | 52 | 3,120 - 9,360 | 1,500 × 1,500 × 4,000 |
| MC-88 | 88 | 72 | 4,320 - 12,960 | 1,800 × 1,500 × 4,000 |
| MC-96 | 96 | 78 | 4,680 - 14,040 | 2,000 × 1,500 × 4,100 |
| MC-120 | 120 | 96 | 5,760 - 17,280 | 2,500 × 1,500 × 4,100 |
| MC-160 | 160 | 130 | 7,800 - 23,400 | 3,200 × 1,500 × 4,100 |
| MC-200 | 200 | 160 | 9,600 - 28,800 | 3,900 × 1,500 × 4,100 |
